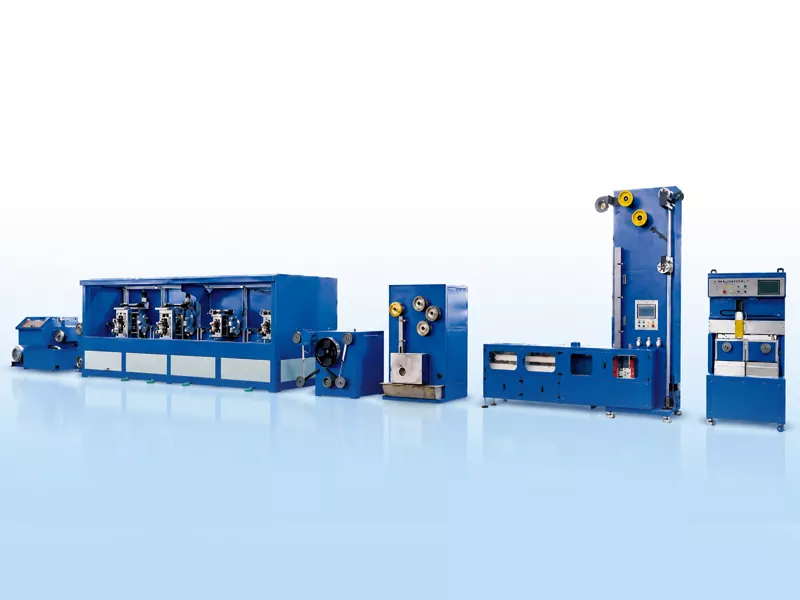

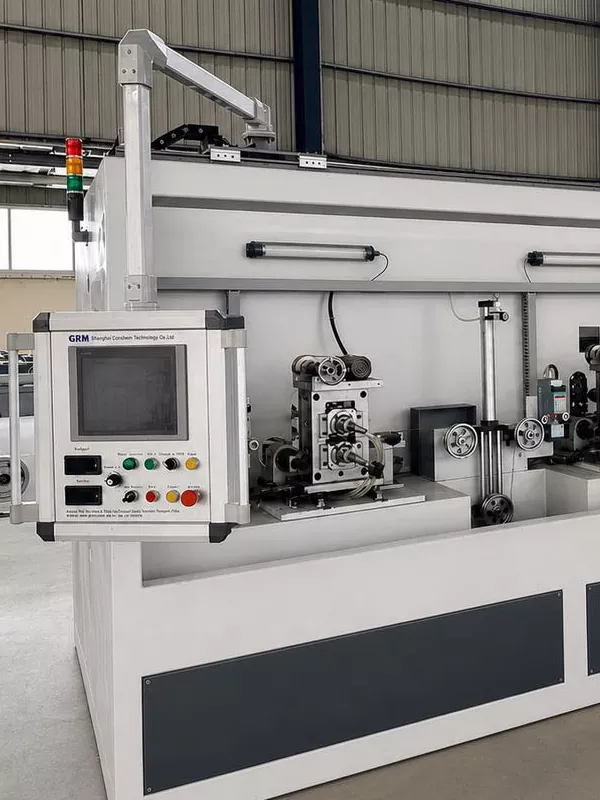

PV Busbar Ribbon Production Line

Hoʻolālā ʻia ka GRM PV Busbar Ribbon Production Line e hana mau i ka TU1 oxygen-free copper round uea i loko o ka lipine conductive flat conductive kiʻekiʻe. He kūpono ka laina no ka PV interconnection ribbon, busbar ribbon, and reflective busbar ribbon production.
Hoʻohui ka laina piha i ke kaha kiʻi uea, ka ʻōwili pololei ʻana, ka hoʻopili mau ʻana, ka mālama ʻana i ka flux, ka uhi wela wela, a me ka lawe ʻakomi. Kōkua ia i nā mea hana lipine PV e hoʻomalu i ka laulā a me ka pololei o ka mānoanoa, ka maikaʻi o ka uhi ʻana i ka tin, ka pololei o ka huki ʻana, a me ke kūlike o ka wili.
ʻO ka laina hana lipine GRM busbar ma kahi o 26 m ka lōʻihi a me 3 m ākea, me ke kaumaha o ka laina ma kahi o 14 mau tona. Hiki i ka wikiwiki hoʻolālā ke piʻi i ka 150 m / min, ma muli o ka nui o ke kaula keleawe, nā ana lipine i hoʻopau ʻia, ka wikiwiki o ka tinning, a me ke ʻano lawe. Ma lalo o nā kūlana hana maʻamau, hiki i ka hopena o kēlā me kēia mahina ke hiki i kahi 60-80 tons.

E hoʻouna i ka nīnau

Hōʻike huahana

Mai ke Uea keleawe a i ka lipine Busbar i pau

Hoʻohana nui ka PV Busbar Ribbon Production Line i ka uea keleawe e like me ka mea maka. Ua huki mua ʻia ka uea i ke anawaena i koi ʻia no ka ʻōwili ʻana, a laila hana ʻia i lipine palahalaha ma o ka ʻōwili pololei ʻana i nā kū he nui. Ma hope o ka ʻōwili ʻia ʻana, hele ke kaula keleawe i ka hoʻopili mau ʻana e hoʻoponopono i kona mau waiwai mechanical, a ukali ʻia e ka flux treatment a me ka uhi wela wela. ʻO ka hope, ua ʻeha ʻia ka lipine i hoʻopau ʻia e ka ʻōnaehana lawe ʻakomi ma luna o nā wili a i ʻole nā wili pancake.

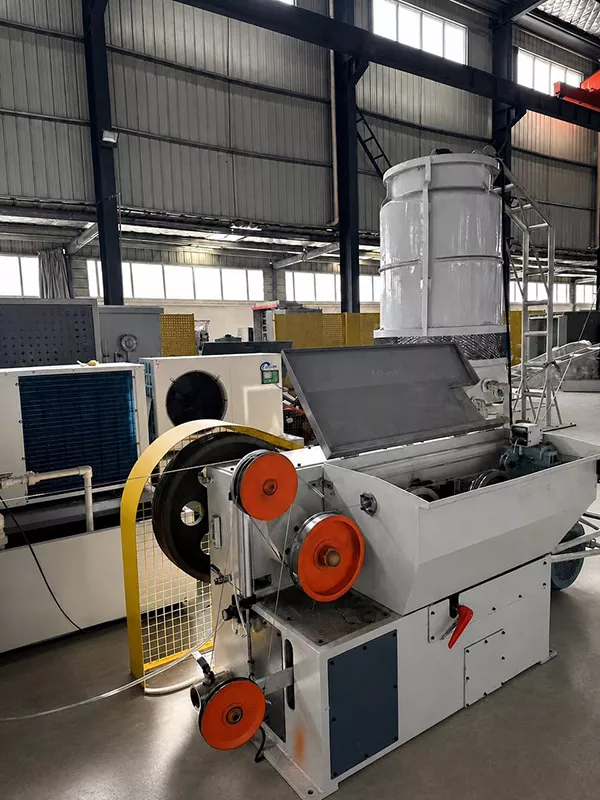

Mīkini kaha kiʻi

Ua huki ʻia ka uea keleawe ma o nā make i ke anawaena o 2.6-3.0 mm, mākaukau no ka ʻōwili ʻana.

4 Kū i ka ʻōwili

Ua ʻōwili ʻia ka uea keleawe poepoe i loko o ka lipine palahalaha, me ka pololei o ka laulā a me ka mānoanoa.

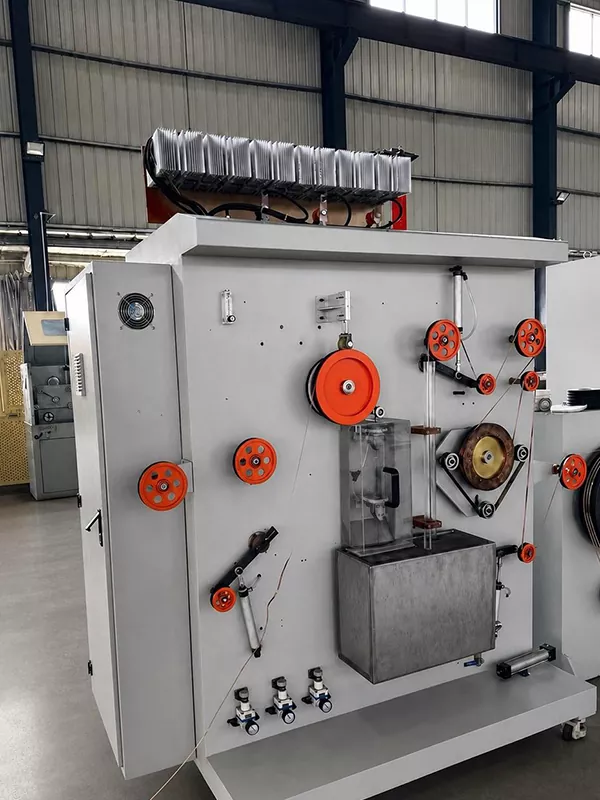

Hoʻopili

Hoʻohana ʻia ka annealing pōkole me ka pale kinoea inert a me ka hoʻoheheʻe ʻana i ka wai e hoʻomaikaʻi ai i nā waiwai mechanical o ka lipine keleawe.

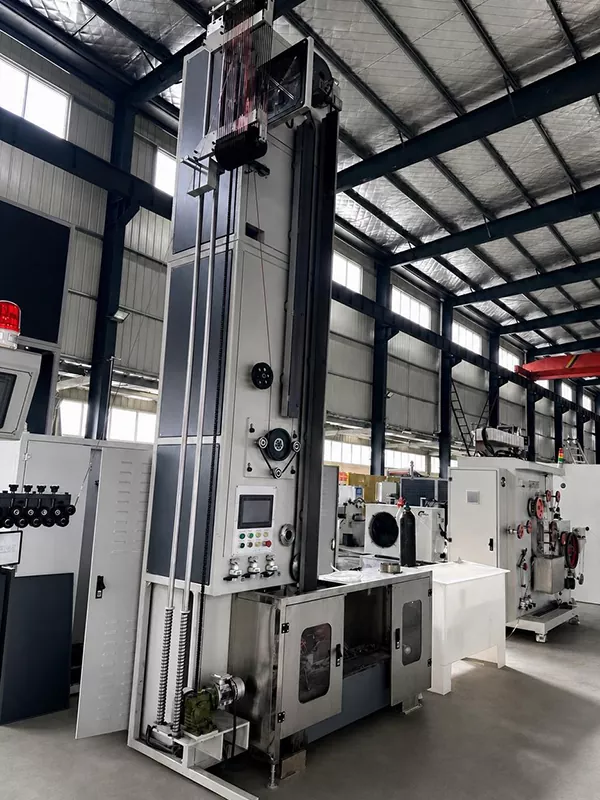

Pani Kino

Hoʻohana ʻia ka uhi wela wela. Na nā pahi ea e hoʻomalu i ka mānoanoa o ka papa tin, a kōkua nā mea hoʻoluʻu e hoʻopaʻa i ka maikaʻi o ka ʻili. ʻO ka mānoanoa o ka uhi pā hoʻokahi ʻaoʻao: 0.01-0.025 mm.

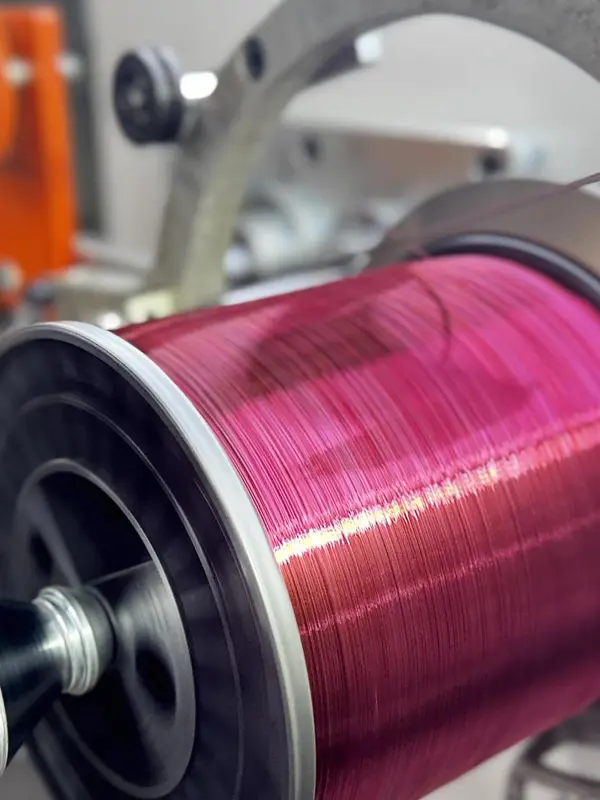

ʻO ka huila ʻakomi Chang

Loaʻa nā hana koho i ka servo traversing, hoʻololi spool maʻalahi, ʻoki ʻoki a me ka paʻi ʻakomi.

Lawe pololei

ʻO ka wili wili: a hiki i 30 kg.

Pancake coil wili: koho 1-2 kg.

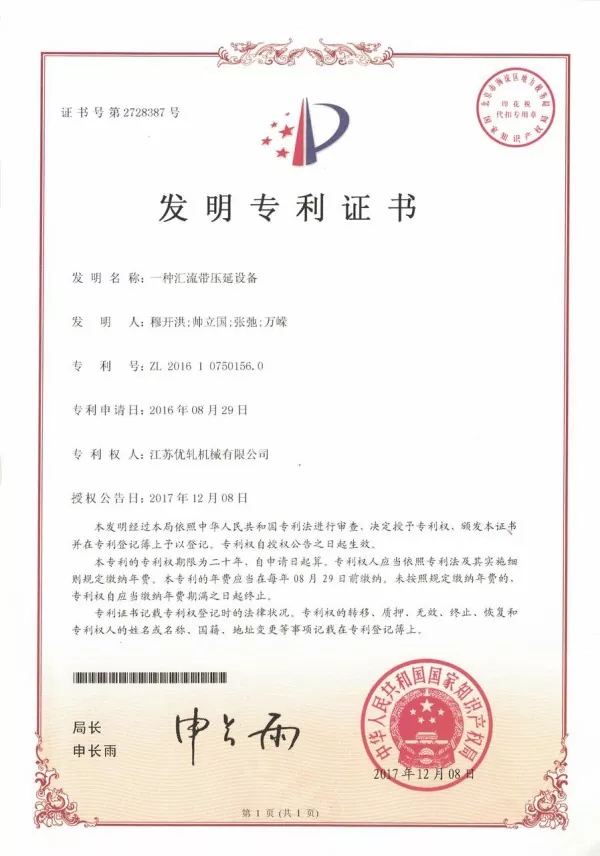

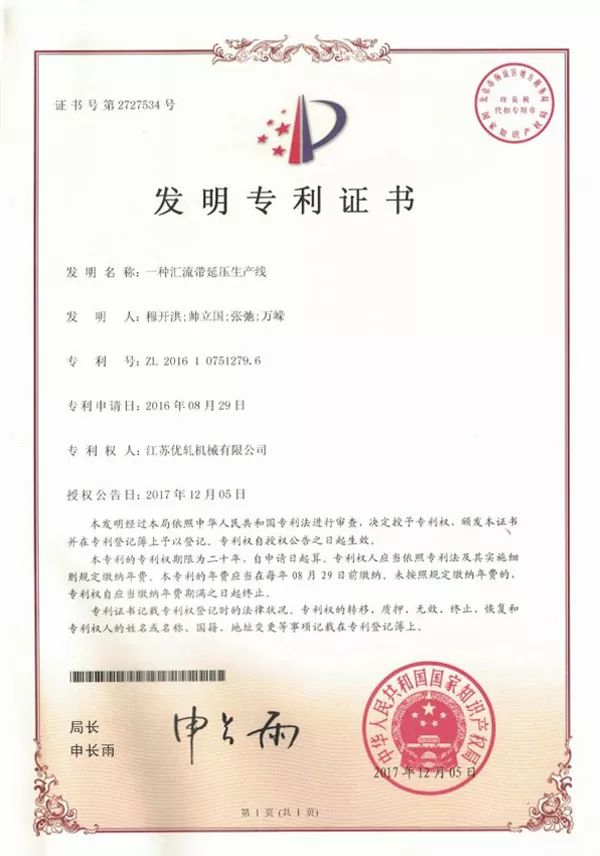

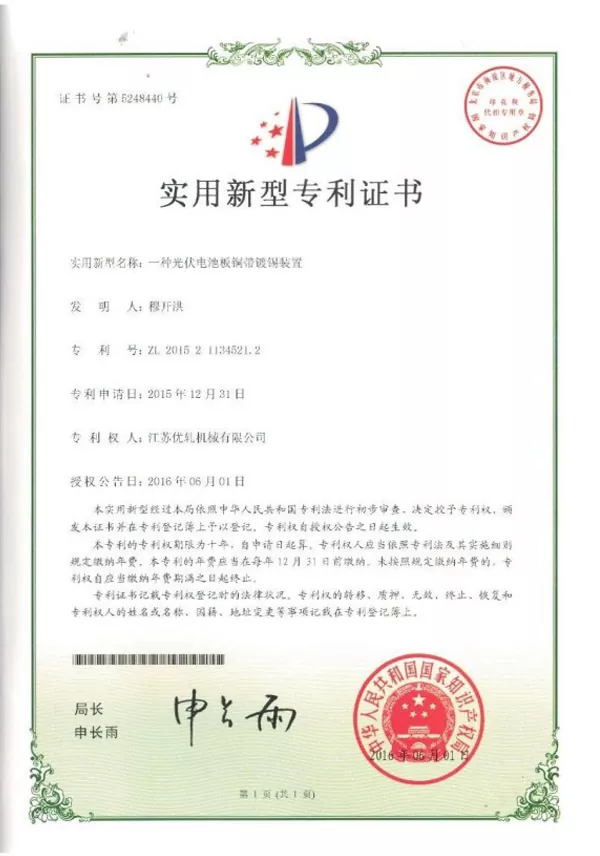

R&D a me nā Palapala Sila Nui

Mai ka makahiki 2015, ua hoʻomau ʻo GRM i ka hoʻomohala ʻana i nā lako hana no ka lipine interconnection PV a me ka lipine busbar. Ua loaʻa i ka hui nā patent ʻenehana he nui e pili ana i ka holo pololei, ka hoʻohui ʻana o ka laina hana, a me nā kaʻina hana lipine PV.

GRM Patented Technologies no PV Ribbon Manufacturing Equipment

Nā mea nui

Hoʻomau ka hana ʻana mai ka hoʻokomo uea keleawe a hiki i ka hoʻopuka ʻana i ka lipine busbar i hoʻopaʻa ʻia.
Hoʻomaikaʻi ʻia ke ʻano kūlike, ka like ʻana o ka uhi ʻana, a me ka maikaʻi wili.
ʻO ka hoʻohui ʻana i ka ʻuʻuku a me ka lawe ʻana i nā mea kōkua e hōʻemi i nā hoʻopau hana a me ka hana lima.
Kākoʻo ʻia nā lipine busbar maʻamau a me ka hana lipine busbar reflective no nā koi ʻokoʻa PV module.
Hāʻawi i nā mea hana lipine PV me kahi hopena hana hoʻohui i kālele ʻia i ka mana kaʻina hana, ka paʻa ʻana o ka huahana, a me ka hana pono.

Nīnau pinepine

1.He aha ka nui o nā huahana i hoʻopau ʻia?

Hoʻopau laula: 3-8 mm.

Hoʻopau mānoanoa: 0.2-0.4 mm.

2.He aha nā pae hoʻomanawanui a me ka waiwai mechanical?

ʻO ka ʻae ākea: ± 0.085 mm.

Mānoanoa hoʻomanawanui: ±0.01 mm.

Ka ikaika tensile: ≥260 MPa.

Ka ikaika hua: 90-130 MPa.

3.He aha ke ʻano o ka uhi ʻana i ka tin i hoʻohana ʻia?

Hoʻohana ka laina i ka uhi wela wela, me ka uhi piha a puni ka lipine, me nā ʻaoʻao ʻelua.

4.Pehea e ana ʻia ai ka laula a me ka mānoanoa?

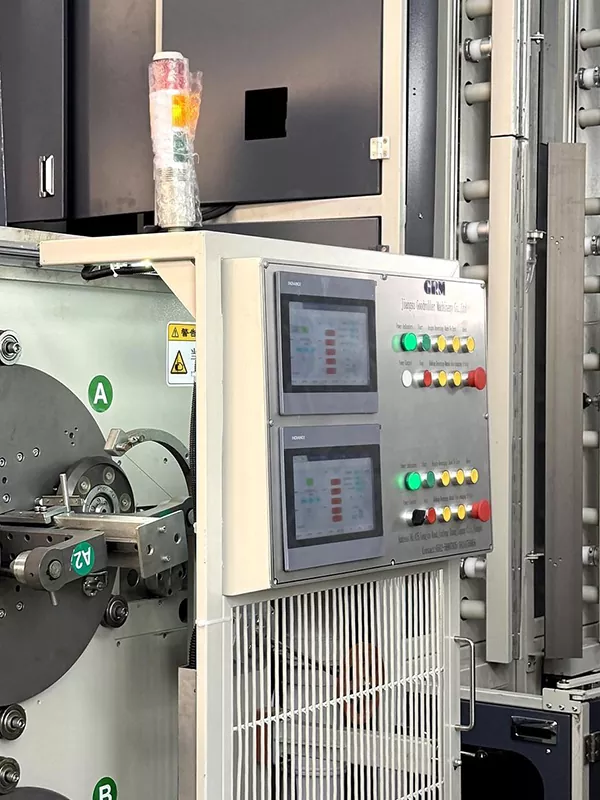

ʻO ke kū ʻehā o ka wili wili ʻehā kū me ʻelua ʻōnaehana ana laser, hoʻokahi no ke ana ākea a hoʻokahi no ke ana mānoanoa. Hiki ke hōʻike ʻia ka ʻikepili ana ma ka HMI.

5.He aha nā mea hiki ke hana?

Hoʻolālā nui ʻia ka PV Busbar Ribbon Production Line no TU1 oxygen-free copper wire. Hiki ke hāʻawi ʻia nā hoʻonohonoho i hoʻonohonoho ʻia e like me nā ʻāpana keleawe like ʻole, nā ana huahana, a me nā koi lipine kūikawā.
